Control Combustion Temperatures and Reduce Harmful Emissions
The exhaust gas recirculation system routes a controlled amount of exhaust gas back into the engine intake. This lowers combustion temperatures and helps reduce nitrogen oxide emissions during certain driving conditions.
Depending on the vehicle, the system may include an EGR valve, electronic actuator, vacuum solenoid, pressure sensor, temperature sensor, vacuum hoses, wiring, connectors, cooler, and passages inside the intake manifold or cylinder head.
Carbon buildup, electrical faults, vacuum leaks, sticking valves, and blocked passages may interrupt EGR flow and trigger drivability or emissions concerns.
Common Symptoms of an EGR System Problem
What Is Your Vehicle Doing?
Select the symptom that best matches your concern.
Select a symptom above.
Parts That Control Exhaust Gas Recirculation
EGR Valve
Controls the amount of exhaust gas entering the intake based on engine load, speed, temperature, and computer commands.
Solenoid or Electronic Actuator
Opens and closes the valve using vacuum control or an electric motor commanded by the engine computer.
Sensors and Passages
Pressure, temperature, and position sensors help confirm flow while internal passages route exhaust gas into the intake.
Trouble Codes Identify a System Condition, Not Always a Failed Valve
Insufficient Flow Codes
Codes such as P0401 may involve clogged passages, carbon buildup, restricted hoses, a failed valve, weak vacuum supply, or sensor faults.
Excessive Flow Codes
Codes such as P0402 may indicate a valve stuck open, incorrect valve command, damaged actuator, vacuum-control fault, or sensor problem.
Circuit and Position Codes
Electrical codes may involve the valve motor, position sensor, solenoid, power supply, ground, wiring, connectors, or control circuit.
Exhaust Deposits Can Block EGR Flow
Soot and carbon can collect inside the EGR valve, intake manifold, exhaust passages, connecting tubes, and cylinder-head ports. Even when the valve operates correctly, restricted passages may prevent enough exhaust gas from reaching the intake.
Proper diagnosis may require inspecting and cleaning the passages instead of replacing the valve alone.
Excessive EGR Flow Can Cause Rough Idle and Stalling
The EGR valve should normally remain closed during startup and idle. If carbon deposits, actuator failure, or vacuum problems hold the valve open, exhaust gas may dilute the intake mixture and cause rough idle, hesitation, misfires, or stalling.
Insufficient EGR Flow Can Increase Combustion Temperatures
A valve stuck closed or a blocked passage may prevent exhaust gas recirculation under load. This can raise combustion temperatures, increase nitrogen oxide emissions, and contribute to pinging or spark knock.
Modern EGR Valves Require Scan-Tool and Circuit Testing
Many vehicles use electronically controlled EGR valves with built-in position sensors. Diagnosis may include commanding the valve open and closed with a scan tool while monitoring position, engine speed, manifold pressure, airflow, and sensor response.
Power, grounds, resistance, wiring integrity, and connector condition should also be verified before replacing the valve.
Vacuum Leaks and Solenoid Faults Can Prevent Valve Operation
Older systems may use engine vacuum, hoses, delay valves, switching solenoids, or vacuum transducers to control EGR flow. Cracked hoses, blocked ports, weak vacuum, or failed solenoids may prevent the valve from opening or closing properly.
Some Engines Cool Exhaust Gas Before Returning It to the Intake
Diesel, turbocharged, and some modern gasoline engines may use an EGR cooler to reduce exhaust-gas temperature. Carbon restriction, coolant leaks, cracked cooler components, or blocked passages may cause performance, emissions, or cooling-system concerns.
An EGR Code Does Not Always Mean the Valve Needs Replacement
A trouble code may be caused by blocked intake passages, a failed sensor, wiring damage, vacuum leaks, exhaust restriction, carbon accumulation, engine temperature problems, or airflow measurement concerns.
Testing the complete system helps prevent unnecessary parts replacement.
EGR Faults Can Prevent a Vehicle From Passing Emissions Testing
An illuminated check engine light, stored EGR code, or incomplete readiness monitor may lead to an emissions-test failure or rejection. Clearing codes without repairing the problem also resets monitor status.
After repairs, the system should be verified and the vehicle may need to complete specific driving conditions before its monitors become ready.

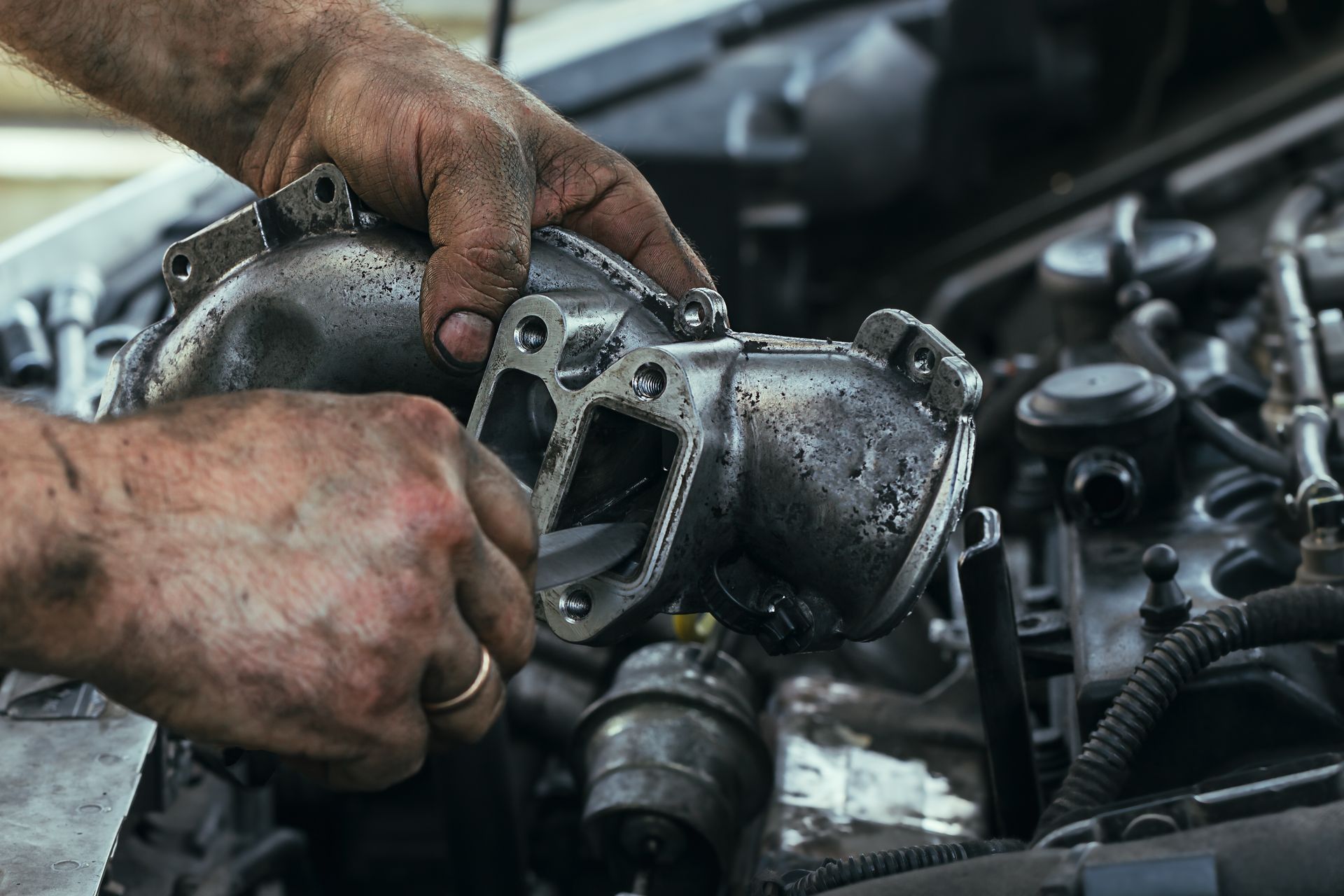

EGR Valve Service for Most Vehicle Types
What We Inspect, Test and Repair
Check Engine Light Diagnosis
Stored trouble codes, freeze-frame information, readiness monitors, and live scan-tool data are reviewed before replacing components.
Valve Operation Testing
Electronic and vacuum-operated EGR valves are commanded and monitored to verify proper opening, closing, and position feedback.
Carbon Inspection
Carbon accumulation inside the valve, intake passages, EGR tubes, and manifold is inspected for flow restrictions.
Vacuum & Electrical Testing
Vacuum supply, solenoids, pressure sensors, wiring, grounds, connectors, and electrical circuits are tested.
EGR Cooler Inspection
Where equipped, the EGR cooler is inspected for restriction, leaks, coolant contamination, and proper operation.
Engine Performance Evaluation
Fuel trims, airflow, ignition timing, engine temperature, manifold pressure, and related systems are evaluated.
Professional Repair
Carbon cleaning, valve replacement, cooler service, sensor replacement, hose repair, or electrical repairs are completed as needed.
Final Verification
Engine performance, EGR flow, readiness monitors, emissions operation, and trouble codes are verified after repair.
Our EGR Valve Diagnostic Process
1. Scan Vehicle
Retrieve EGR trouble codes, freeze-frame information, and live engine data.
2. Inspect the System
Inspect the valve, cooler, vacuum hoses, passages, wiring, connectors, and sensors.
3. Test Valve Operation
Verify valve movement, position feedback, electrical circuits, or vacuum control.
4. Confirm Root Cause
Determine whether carbon buildup, a failed valve, sensor, wiring fault, or another issue caused the problem.
5. Complete Approved Repair
Perform cleaning, repair, or replacement using quality replacement components.
6. Verify Repair
Confirm proper EGR operation, engine performance, emissions readiness, and normal drivability.
