Help the Engine Control Fuel Mixture and Monitor Emissions
Oxygen sensors measure the amount of oxygen in the exhaust stream and send information to the engine computer. The computer uses this data to adjust fuel delivery, monitor combustion efficiency, and evaluate catalytic-converter performance.
Many vehicles use multiple oxygen sensors. Upstream sensors help control the air-fuel mixture, while downstream sensors monitor catalytic-converter operation. A sensor code does not always mean the sensor itself has failed, so proper testing is important before replacement.
Common Symptoms of an Oxygen Sensor Problem
What Is Your Vehicle Doing?
Select the condition that best matches your concern.
Select a symptom above.
Upstream and Downstream Sensors Perform Different Jobs
Upstream Oxygen Sensor
Located before the catalytic converter and used primarily to help the engine computer adjust fuel delivery.
Downstream Oxygen Sensor
Located after the catalytic converter and used mainly to monitor converter efficiency and exhaust oxygen levels.
Air-Fuel Ratio Sensor
Some vehicles use wideband air-fuel ratio sensors that provide more precise mixture information than a traditional O2 sensor.
An Oxygen Sensor Trouble Code Does Not Always Mean the Sensor Is Bad
Sensor Failure
The sensor may respond slowly, remain stuck, produce inaccurate data, or fail internally.
Heater Circuit Failure
A damaged heater element, fuse, relay, wiring circuit, connector, or ground may prevent the sensor from reaching operating temperature.
Engine or Exhaust Problem
Vacuum leaks, misfires, exhaust leaks, fuel-pressure issues, or catalytic-converter faults may cause abnormal sensor readings.
Trouble Codes Help Identify the Circuit and Sensor Location
Sensor Performance Codes
Codes may indicate slow response, no activity, low voltage, high voltage, or an unexpected sensor signal.
Heater Circuit Codes
Heater codes may involve the sensor heater, fuse, relay, wiring, connector, power supply, or ground.
Catalyst Efficiency Codes
Codes such as P0420 or P0430 may involve the catalytic converter, oxygen sensors, exhaust leaks, or engine-performance problems.
Sensor Response Must Be Evaluated While the Engine Is Running
Professional diagnosis may include reviewing live oxygen-sensor voltage, air-fuel ratio data, heater status, short-term and long-term fuel trims, engine temperature, load, and catalytic-converter behavior.
Sensor readings must be interpreted together with the engine's operating condition rather than judged from a code alone.
Exhaust Leaks Can Create False Oxygen Sensor Readings
A leak near the exhaust manifold, flex pipe, gasket, flange, sensor port, or upstream exhaust pipe may draw outside air into the exhaust stream and make the sensor report a lean condition.
Exhaust leaks should be repaired before replacing sensors based only on abnormal readings.
Oxygen Sensor Data Influences Fuel Delivery
The engine computer adjusts fuel delivery based partly on oxygen sensor feedback. If the system detects excess oxygen, it may add fuel. If it detects too little oxygen, it may reduce fuel.
Abnormal fuel trims may also result from vacuum leaks, fuel-pressure problems, leaking injectors, airflow sensor faults, ignition misfires, or engine mechanical concerns.
Oil, Coolant, Fuel and Additives Can Damage Oxygen Sensors
Engine oil consumption, internal coolant leaks, excessive fuel, silicone contamination, sealants, and certain additives may coat or damage the sensor element.
Replacing the sensor without correcting the source of contamination may cause the replacement sensor to fail prematurely.
Downstream Sensors Help Evaluate Converter Performance
The engine computer compares upstream and downstream sensor activity to estimate whether the catalytic converter is storing oxygen and reducing emissions effectively.
Similar sensor patterns may indicate reduced converter efficiency, but exhaust leaks, misfires, fuel-mixture problems, or sensor faults must be ruled out first.
Oxygen Sensors Can Become Seized in the Exhaust System
Heat cycles, corrosion, rust, and damaged threads may make oxygen sensor removal difficult. Improper removal can damage the exhaust manifold, catalytic converter, pipe threads, wiring, or nearby components.
Correct tools, thread preparation, routing, connector placement, and torque procedures help protect the exhaust system and replacement sensor.
Replacing a Sensor Does Not Immediately Complete Emissions Monitors
After codes are cleared or the battery is disconnected, the vehicle may need to complete specific drive cycles before oxygen-sensor, catalyst, EVAP, and other emissions monitors become ready.
A vehicle may be rejected from emissions testing when too many monitors remain incomplete.

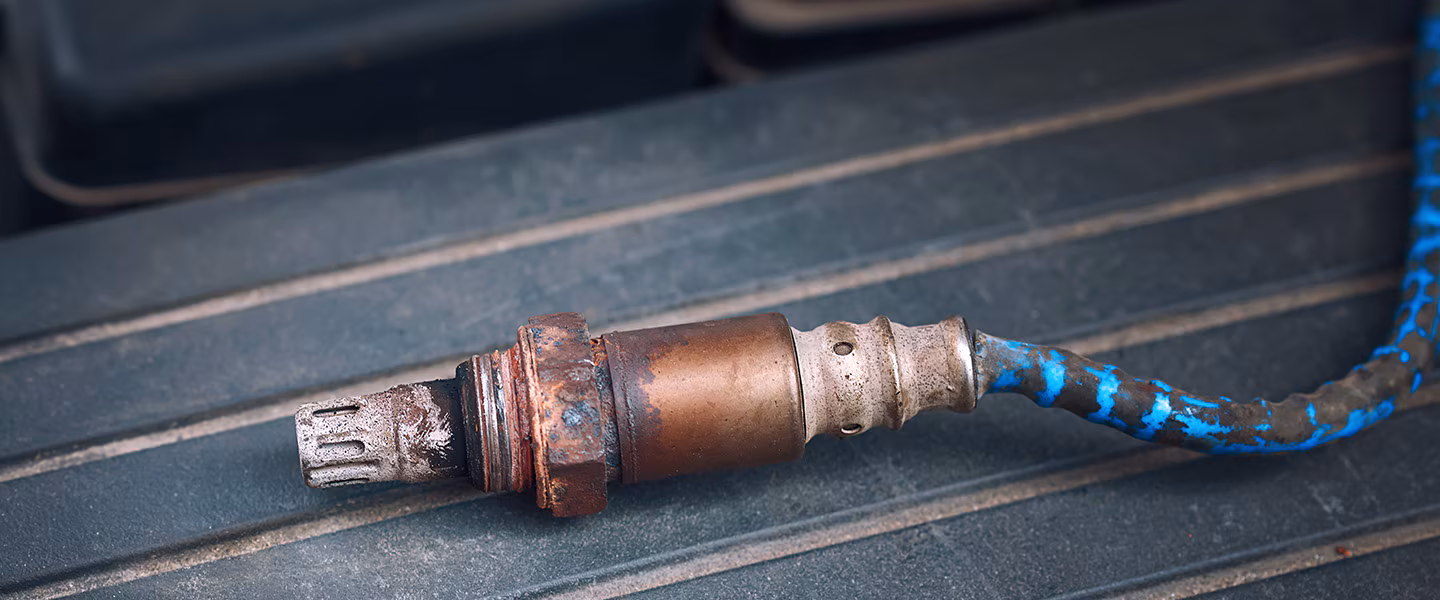

Oxygen Sensor Replacement for Most Vehicle Types
What We Inspect, Test and Replace
Check Engine Light Diagnosis
Stored trouble codes, freeze-frame data, readiness monitors, and engine operating conditions are reviewed before replacing any sensor.
Live O₂ Sensor Data
Upstream and downstream sensor voltage, switching speed, heater operation, response time, and waveform activity are analyzed.
Fuel Trim Analysis
Short-term and long-term fuel trims are evaluated to determine whether the engine is operating rich, lean, or normally.
Heater Circuit Testing
Heater power, grounds, wiring, resistance, connectors, fuses, and related electrical circuits are tested.
Exhaust Leak Inspection
Exhaust manifolds, gaskets, flex pipes, flanges, welds, catalytic converters, and sensor bungs are inspected.
Catalytic Converter Evaluation
Converter efficiency is evaluated using upstream/downstream sensor comparison and engine operating data.
Professional Sensor Replacement
Failed oxygen sensors are replaced using quality components, proper torque specifications, anti-seize where applicable, and correct wire routing.
Final System Verification
Live data, fuel trims, readiness monitors, emissions operation, and trouble codes are verified after repair.
Our Oxygen Sensor Diagnostic Process
1. Scan Vehicle
Retrieve trouble codes, freeze-frame information, readiness monitors, and live engine data.
2. Inspect the Exhaust System
Check for leaks, damaged pipes, loose connections, and sensor wiring concerns.
3. Test Sensor Performance
Evaluate response speed, voltage changes, heater operation, and sensor activity.
4. Confirm Root Cause
Determine whether the fault is the sensor, catalytic converter, exhaust leak, fuel system, or engine-management issue.
5. Perform Approved Repair
Replace the failed sensor or repair the underlying issue using manufacturer-quality parts.
6. Verify Repair
Confirm proper sensor operation, fuel trims, emissions performance, and absence of trouble codes.
Oxygen Sensors Wear Out Naturally
Oxygen sensors operate in extremely high temperatures and are exposed to carbon, moisture, sulfur, oil, fuel additives, coolant contamination, and constant thermal cycling.
As they age, response slows and fuel-control accuracy decreases, often reducing fuel economy before a warning light appears.
Different Sensors Perform Different Jobs
Upstream sensors constantly adjust fuel delivery while downstream sensors primarily monitor catalytic-converter efficiency.
Replacing the wrong sensor without proper testing may not resolve the original problem.
Poor Sensor Data Can Affect Engine Operation
Incorrect oxygen-sensor feedback may contribute to rough idle, hesitation, reduced fuel economy, poor acceleration, increased emissions, and catalytic-converter damage.
Newer Vehicles May Use Wideband Air-Fuel Ratio Sensors
Many modern gasoline, hybrid, and turbocharged vehicles use air-fuel ratio sensors that require specialized scan-tool testing and manufacturer-specific diagnostics.
