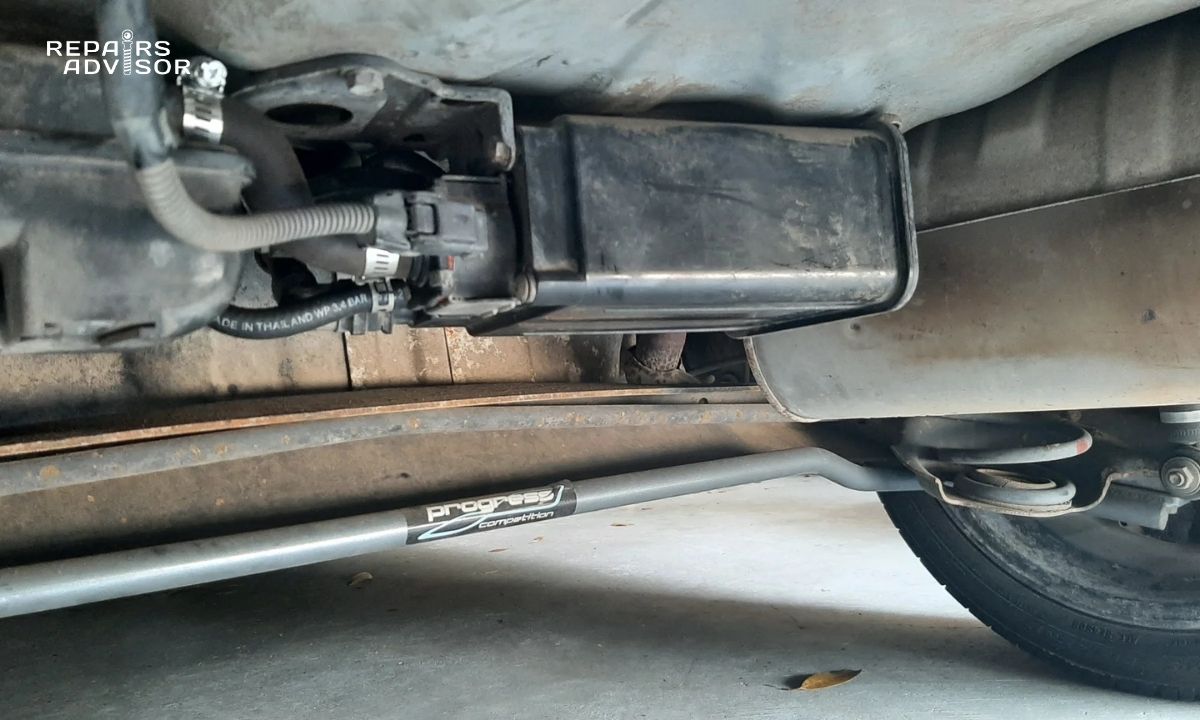

Capture Fuel Vapors Before They Escape Into the Atmosphere
The charcoal canister is a major component of the evaporative emissions (EVAP) system. Instead of allowing gasoline vapors to escape into the atmosphere, the activated charcoal inside the canister stores fuel vapors until the engine can safely burn them during normal driving.
A damaged, saturated, cracked, or restricted charcoal canister can contribute to check engine lights, EVAP leak codes, fuel odors, refueling problems, emissions failures, and drivability concerns.
Common Symptoms of a Bad Charcoal Canister
What Is Your Vehicle Doing?
Select the condition that best matches your concern.
Select a symptom above.
How the Charcoal Canister Works
Stores Fuel Vapors
Activated charcoal absorbs gasoline vapors produced inside the fuel tank.
Controlled Purge Cycle
During normal driving, the purge valve allows stored vapors to enter the engine where they are burned.
Reduces Emissions
Prevents fuel vapors from escaping into the atmosphere while helping vehicles meet emissions standards.
Why Charcoal Canisters Fail
Canisters may become saturated from repeatedly overfilling the fuel tank, contaminated by liquid gasoline, cracked from road debris, restricted by dirt, damaged internally, or affected by failed purge and vent valves.
Many EVAP trouble codes are actually caused by another component, making complete diagnosis important before replacing the canister.
A Restricted EVAP System Can Prevent Proper Refueling
If air cannot vent properly from the fuel tank while refueling, gasoline pumps may repeatedly shut off before the tank is full. Blocked canisters, vent valves, or vent lines commonly contribute to this symptom.
Smoke Machines Help Locate Hidden EVAP Leaks
Professional smoke testing introduces harmless smoke into the EVAP system so leaks can be located around hoses, canisters, valves, tanks, filler necks, and fuel system connections.
The Charcoal Canister Depends on Other EVAP Components
Purge valves, vent valves, pressure sensors, leak detection pumps, hoses, and electrical controls all work together with the charcoal canister. Failure of any one component may create similar symptoms.
Continuing to Pump Fuel After Automatic Shutoff Can Damage the Canister
Repeatedly topping off the fuel tank after the pump clicks off may force liquid gasoline into the charcoal canister, saturating the charcoal media and reducing its ability to store fuel vapors.
EVAP Repairs Must Complete Readiness Monitors
After repairs, the EVAP monitor must complete a specific drive cycle before emissions testing. Clearing codes without repairing the system resets monitor status.
Charcoal Canister Repair for Most Vehicles
What We Inspect, Test and Repair
Check Engine Light Diagnosis
We retrieve EVAP trouble codes, freeze-frame data, readiness monitor status, and live fuel-system information before recommending repairs.
Smoke Leak Testing
Harmless diagnostic smoke is introduced into the EVAP system to locate leaks in hoses, valves, canisters, fittings, filler necks, and fuel-tank connections.
Charcoal Canister Inspection
The canister is checked for cracks, impact damage, fuel saturation, internal restriction, loose charcoal material, and damaged ports.
Purge Valve Testing
The purge valve is tested for correct electrical command, flow, sealing ability, wiring integrity, and proper operation during engine conditions.
Vent Valve Testing
The vent valve, air inlet, filter, wiring, and vent lines are evaluated for blockage, sticking, corrosion, or electrical failure.
Fuel Tank Pressure Testing
Fuel tank pressure sensor data, leak-detection operation, and EVAP system pressure changes are reviewed with professional scan equipment.
Professional Repair
Failed canisters, valves, sensors, hoses, connectors, and related EVAP components are repaired or replaced using quality parts.
Final System Verification
EVAP sealing, purge operation, vent function, trouble-code status, and emissions readiness are verified after repair.
Our Charcoal Canister Diagnostic Process
1. Scan the Vehicle
Retrieve EVAP codes, freeze-frame information, fuel-tank pressure data, and readiness monitor status.
2. Inspect the EVAP System
Check the gas cap, canister, valves, hoses, wiring, filler neck, and fuel-tank connections.
3. Perform Smoke Testing
Pressurize the EVAP system with diagnostic smoke to locate hidden vapor leaks and failed seals.
4. Test Canister and Valves
Evaluate canister restriction, purge flow, vent operation, sensor feedback, and electrical circuits.
5. Complete Approved Repair
Replace or repair the failed canister, valve, hose, sensor, connector, or related component.
6. Verify the Repair
Confirm proper EVAP sealing, normal purge and vent operation, and readiness for emissions testing.
